Frame identity
Use the True X geometry, wheelbase, materials, arms, and plates to understand the structural foundation.
BANDO 5 True X FPV
BANDO 5 / True X / 5-Inch FPV

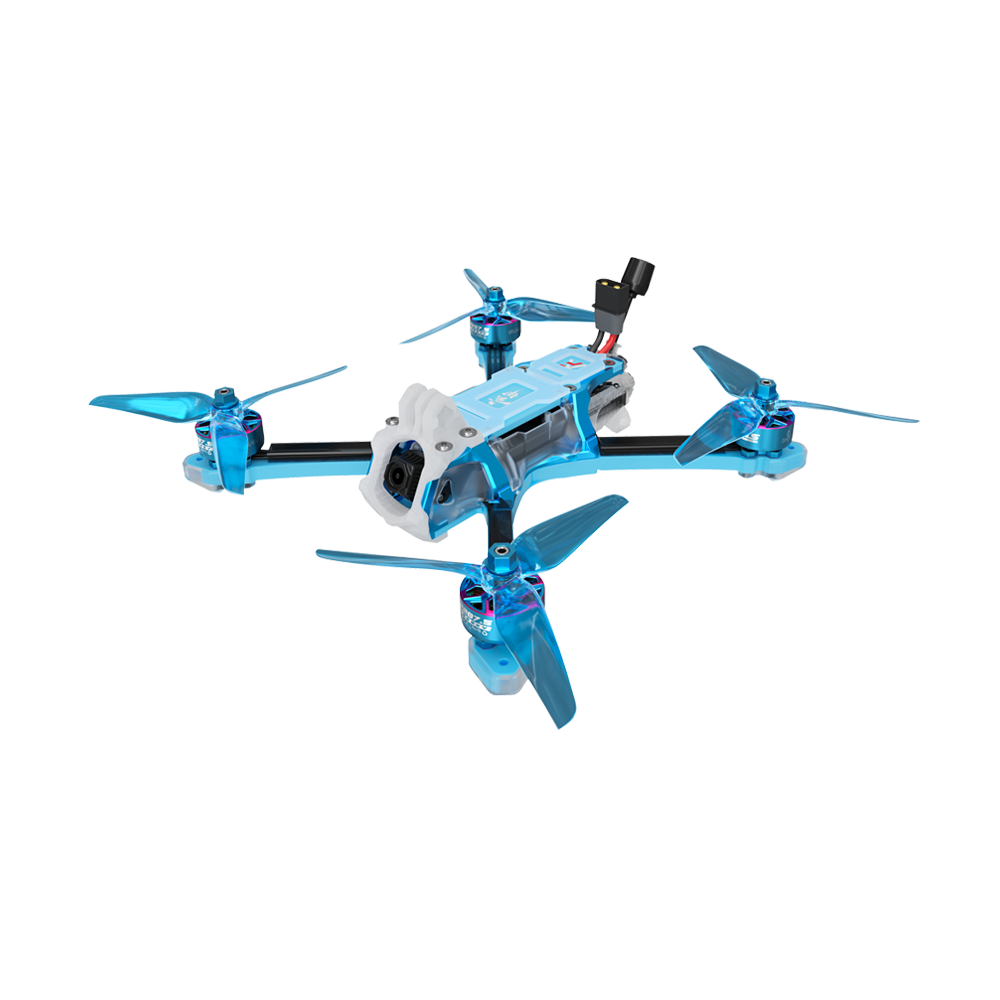

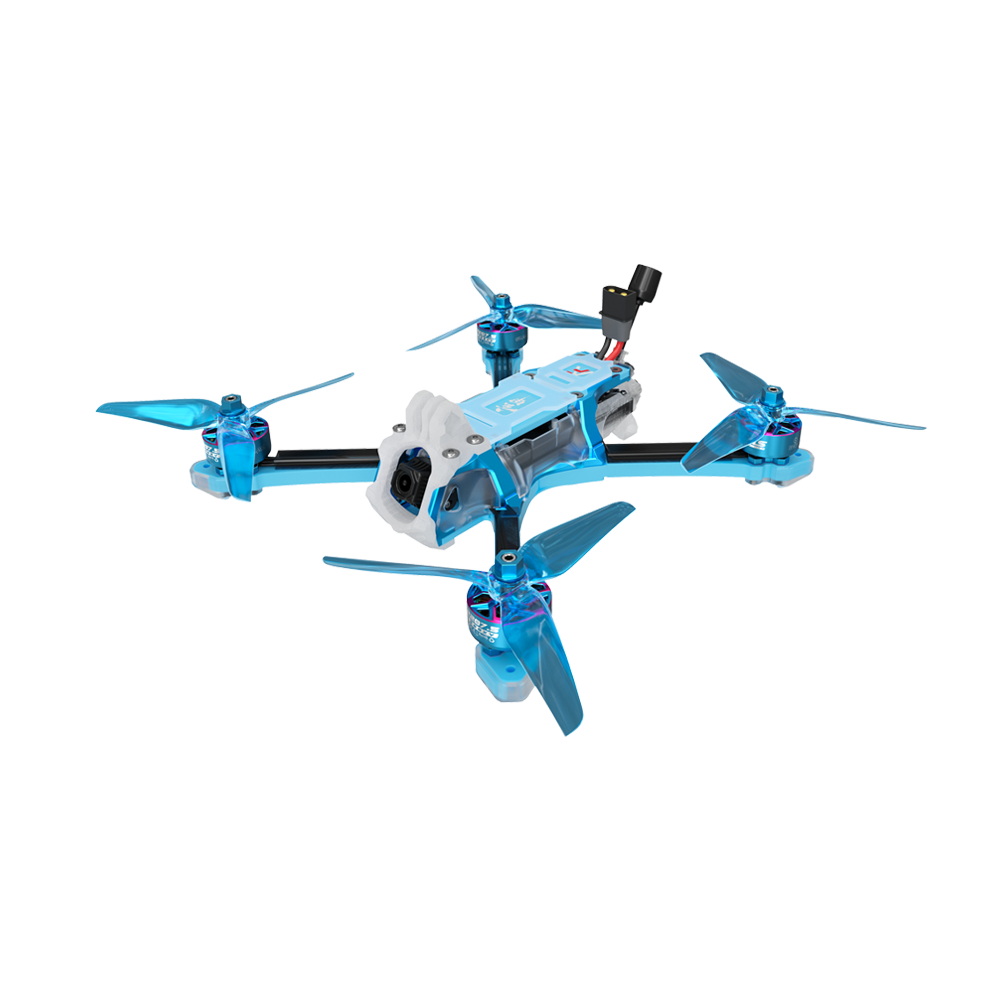

BANDO 5 True X FPV Drone For Configurable 5-Inch Flying
Build around a 230mm True X platform, 7mm arms, and selectable video and receiver paths. Explore this fpv drone and compare the configuration boundary before choosing an fpv drone kit for freestyle, racing, or custom flying.
230mm True X | 7mm arms | H743 Pro | Analog / O4 Lite / O4 PRO / O4 Wide options
True-X Identity
Start with the geometry that defines the build
BANDO 5 uses a True X layout around a 230mm wheelbase. Its structure combines T700 carbon fiber, 7075 aluminum alloy, TPU or injection parts, and 7mm arms for a compact platform with a clear mechanical identity.
230mm wheelbaseTrue X geometry for a centered 5-inch layout.
7mm armsThick 7075 aluminum arms within the stated structure.
3mm plates3mm top and 3mm bottom plate dimensions.
The product title uses Frame wording, while the specification and package area also describe complete-drone configuration details. Treat the selected options and package contents as the final purchase boundary.
Configuration Boundary
Choose the electronics path before comparing flight expectations
The configuration changes the video system, receiver path, weight, and use context. The figures below are product references, not a universal promise for every selected version.
| Flight controller | Axisflying H743 Pro |
|---|---|
| Gyro / barometer | Dual ICM-42688 gyros / DPS368 barometer |
| ESC | 32-bit ESC |
| Motor / prop | BANDO 2207.5 1960KV 6S / HQ R37 |
| VTX options | Analog, O4 Lite, O4 PRO, and O4 Wide variant option |
| Receiver options | AXIS ELRS 2.4G, TBS 915, or PNP |
| Battery guidance | 6S 1300–1800mAh LiPo |
| Weight / flight time | 459g / 461g / 470g by VTX version; 8–15 minutes reference |
Frame, Kit, Or Complete Drone
Use the product language carefully before you buy
FPV product pages can use frame, kit, and complete-drone terms for different purchase boundaries. These three checks keep the wording connected to the actual selection.
Configuration choice
Use VTX, receiver, color, gyro, battery, and weight options to define the version that matches your system.
Package contents
The listed package includes a complete drone, propellers, VTX antenna, mounting accessories, and a user manual; verify the selected variant at checkout.

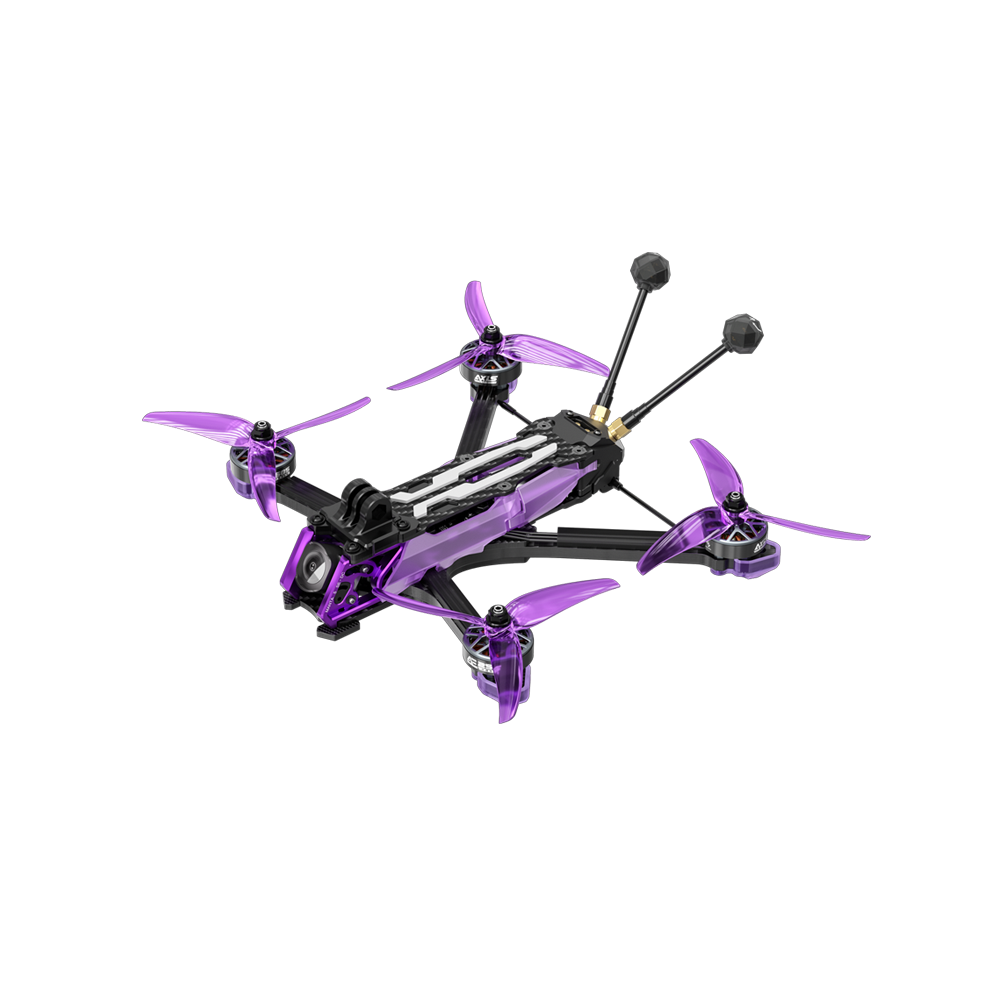

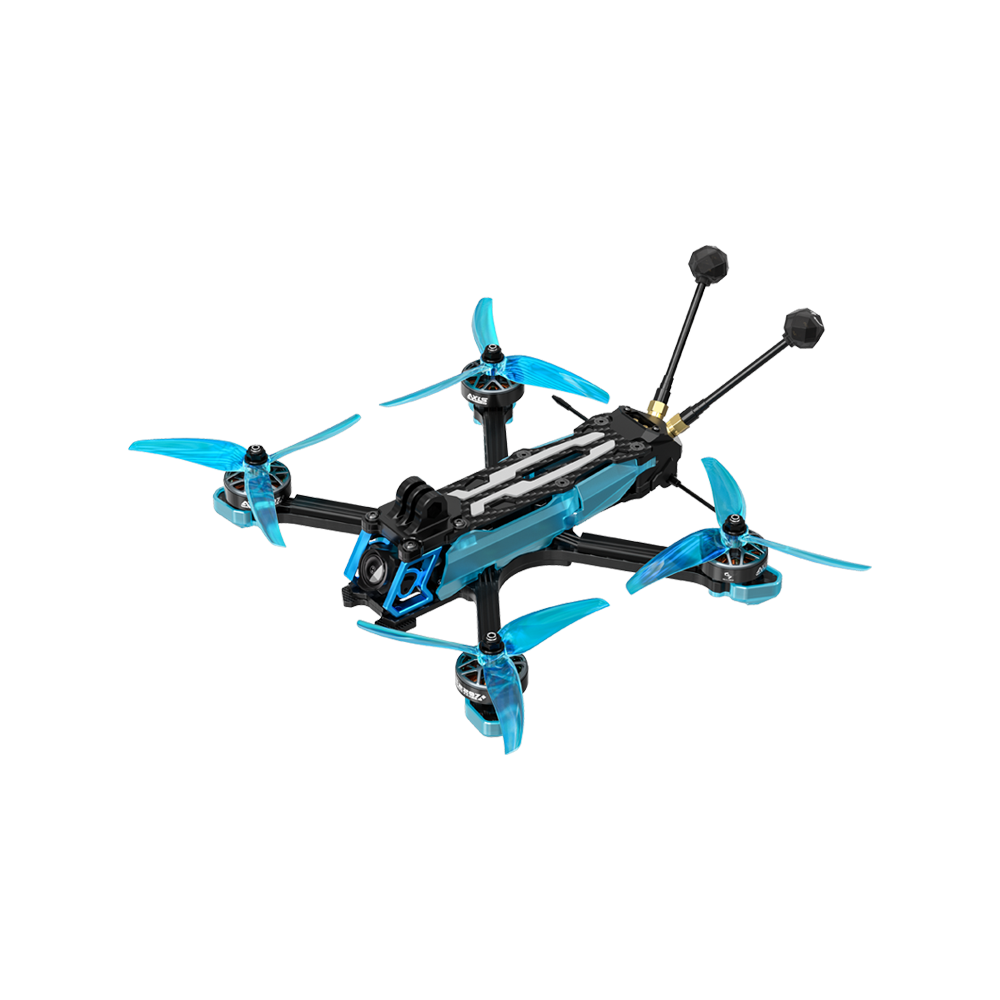

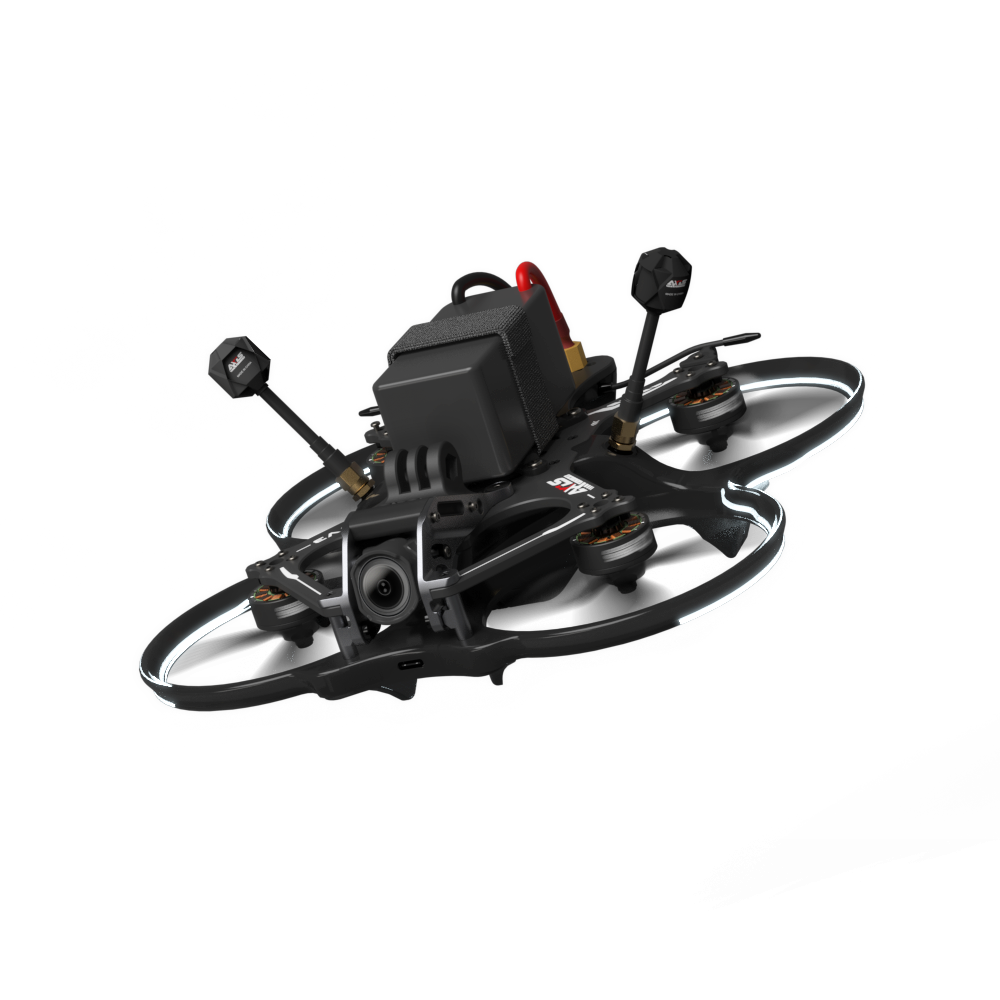

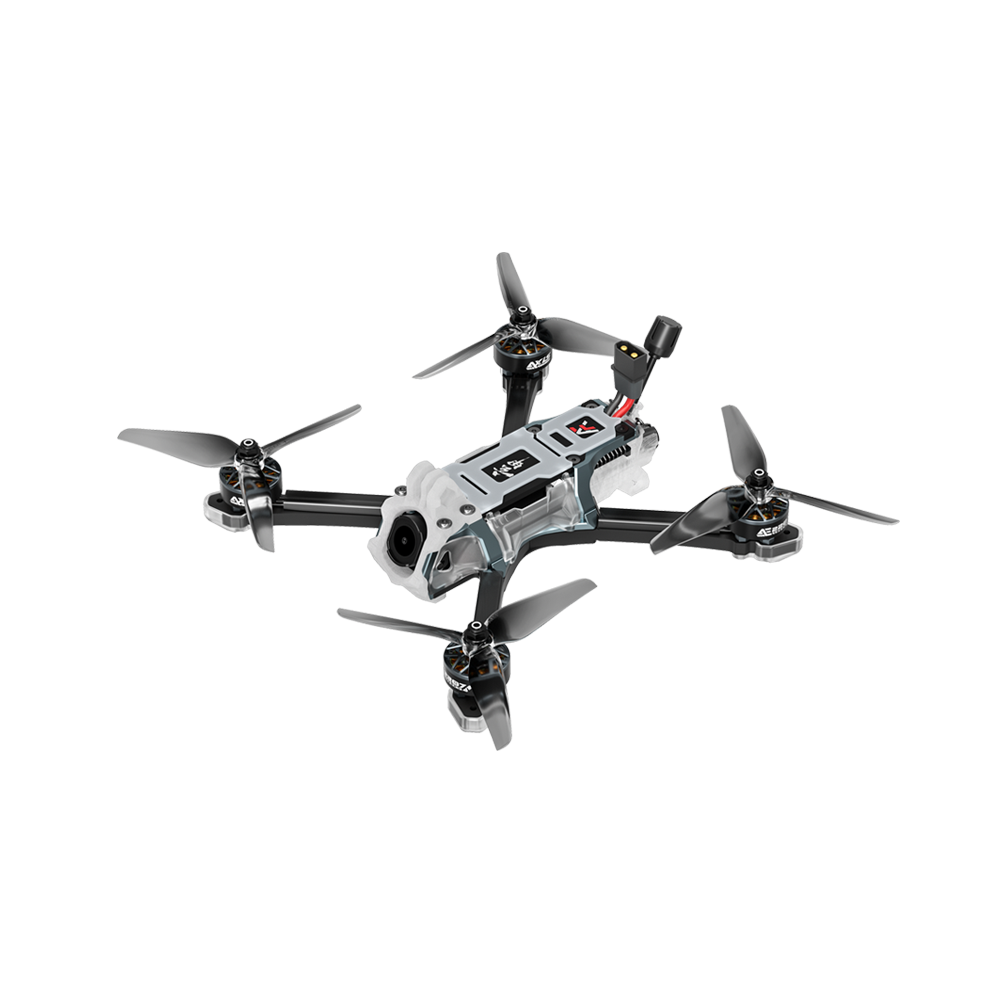

Nearby Axisflying Builds
Compare the platform before settling on one 5-inch path
Open each exact product page to compare its own structure, electronics, and intended setup. These products are alternatives, not automatic add-ons to BANDO 5.
Technical Reading
Three short reads for a cleaner FPV purchase decision
Use the articles to separate product identity, frame geometry, and package terminology before you compare configurations.
Article 01
Read the product-identity guideWhat BANDO 5 True X means
Clarify whether the product identity points to a frame, a configuration, or a complete FPV purchase.
Article 02
Read the geometry guide230mm wheelbase and 7mm arms
Connect True X geometry, structural materials, and arm thickness to the way a 5-inch frame is described.
Article 03
Read the package guideKit, frame, and complete drone terms
Keep package language distinct when product pages use several FPV purchase terms for related but different boundaries.
FAQ
Six practical checks for BANDO 5 True X
What frame layout does BANDO 5 use?
It uses a True X layout with a 230mm wheelbase and 7mm arms.
Which materials and plate sizes are listed?
The structure combines T700 carbon fiber, 7075 aluminum alloy, TPU or injection parts, and 3mm top and bottom plates.
Which video and receiver choices are available?
Video options include Analog, O4 Lite, O4 PRO, and an O4 Wide variant option. Receiver choices include AXIS ELRS 2.4G, TBS 915, and PNP.
What battery range is recommended?
The product information recommends a 6S 1300–1800mAh LiPo battery.
Why do the weight figures vary?
The listed weights are 459g, 461g, and 470g by VTX version, so the selected video configuration changes the reference weight.
Is this page describing a frame, kit, or complete drone?
The product title uses Frame wording, while the specification and package area describe a complete-drone configuration. Review the selected options and package contents before checkout.
