Foreword

Feature

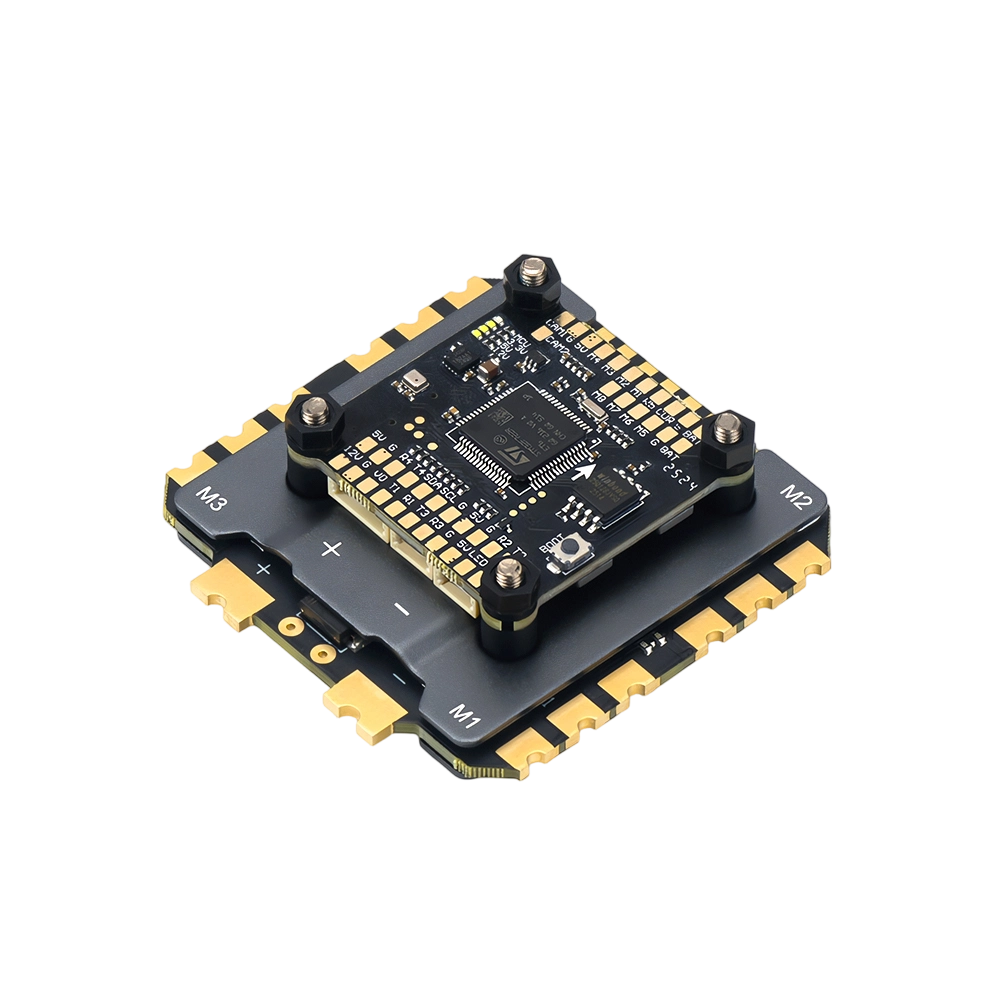

• Integrated stack: Argus Pro 100A ESC + ECO F405 / F722 Flight Controller
• With heat‑dissipating aluminum parts for stable long‑time high‑load operation
• ESC supports 8‑bit / 32‑bit dual versions, 4–8S high voltage input
• 100A continuous current, strong power for 15‑inch propeller drones
• FC options:
  • ECO F405: STM32F405, ICM42688P gyro, 5×UART, 16M blackbox, OSD, baro
  • ECO F722: STM32F722, ICM42688P gyro, 5×UART, 16M blackbox, OSD, baro
• BEC 5V3A / 12V2A, sufficient for HD VTX and peripherals
• Standard 30.5×30.5mm mounting, universal for heavy‑lift frames
• Complete cable set for plug‑and‑play installation

Recommended Configuration

• Stack: Argus Pro 100A + ECO F405 / F722 (8‑bit / 32‑bit)
• Input Voltage: 4–8S LiPo
• FC: ECO F405 (STM32F405) or ECO F722 (STM32F722)
• ESC: 100A continuous, 110A burst
• Mounting: 30.5×30.5mm
• Application: 15‑inch heavy‑lift FPV drones

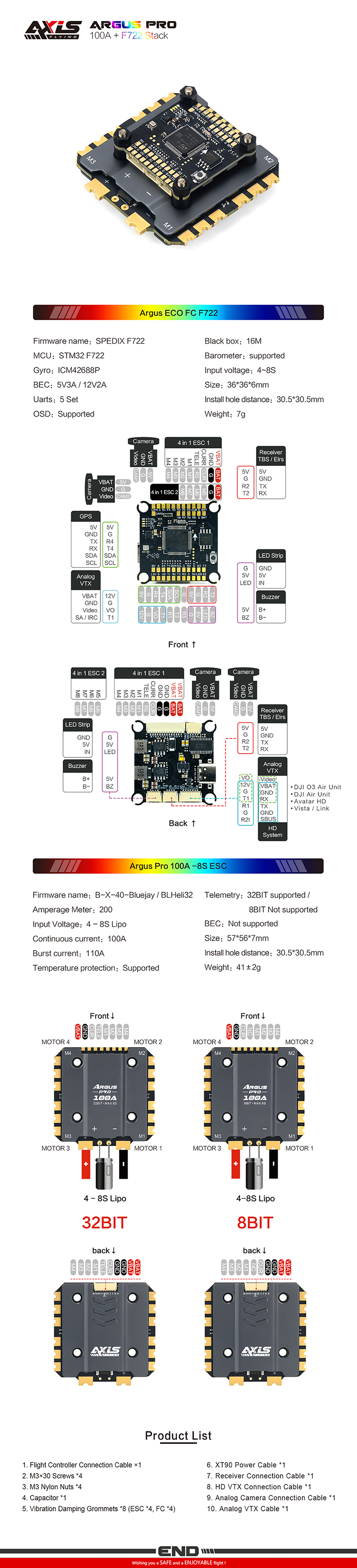

Specifications

Flight Controller: ECO F405

• MCU: STM32F405RGT6
• Gyro: ICM42688P
• Barometer: Supported
• Blackbox: 16M Flash
• Input: 4–8S
• BEC: 5V 3A / 12V 2A
• UARTs: 5 sets
• OSD: Supported
• Size: 36×36×6mm
• Mount: 30.5×30.5mm
• Weight: ~7g

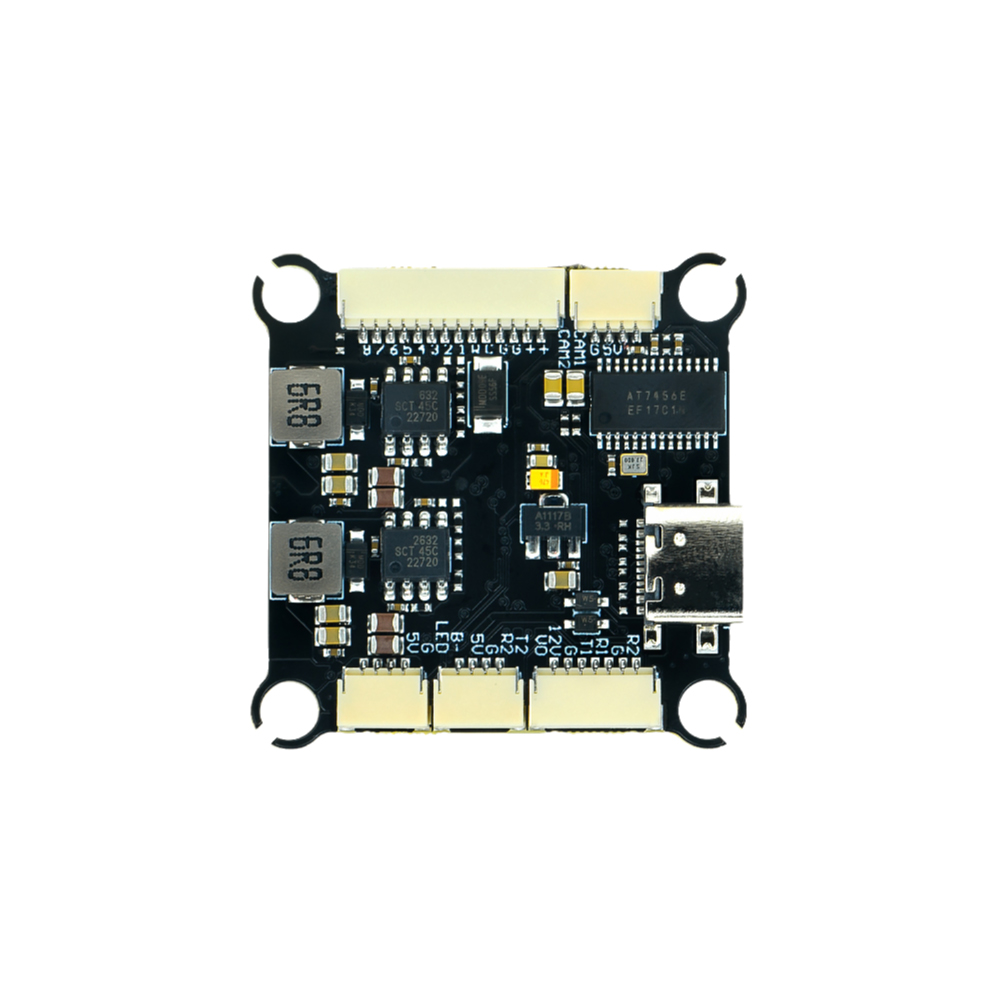

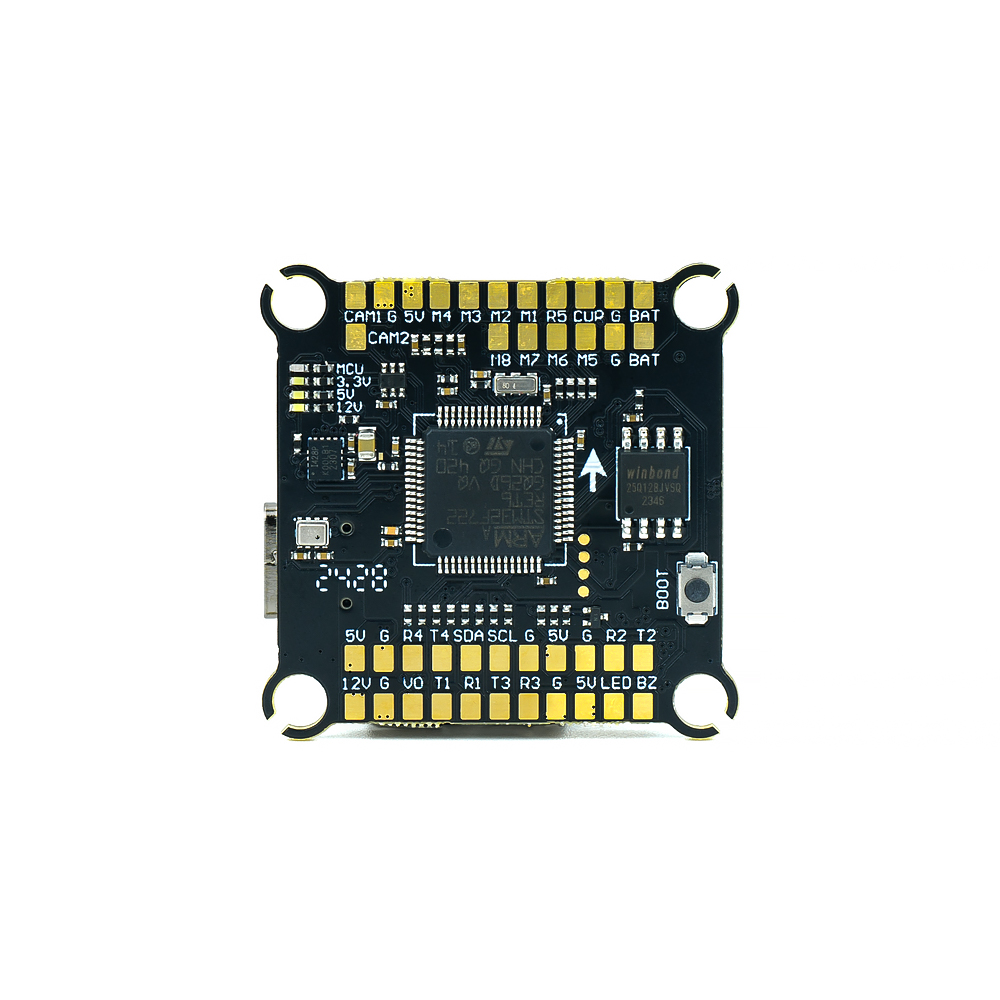

Flight Controller: ECO F722

• Firmware: SPEDIX F722
• MCU: STM32 F722
• Gyro: ICM42688P
• Barometer: Supported
• Blackbox: 16M
• Input: 4–8S
• BEC: 5V 3A / 12V 2A
• UARTs: 5 sets
• OSD: Supported
• Size: 36×36×6mm
• Mount: 30.5×30.5mm
• Weight: 7g

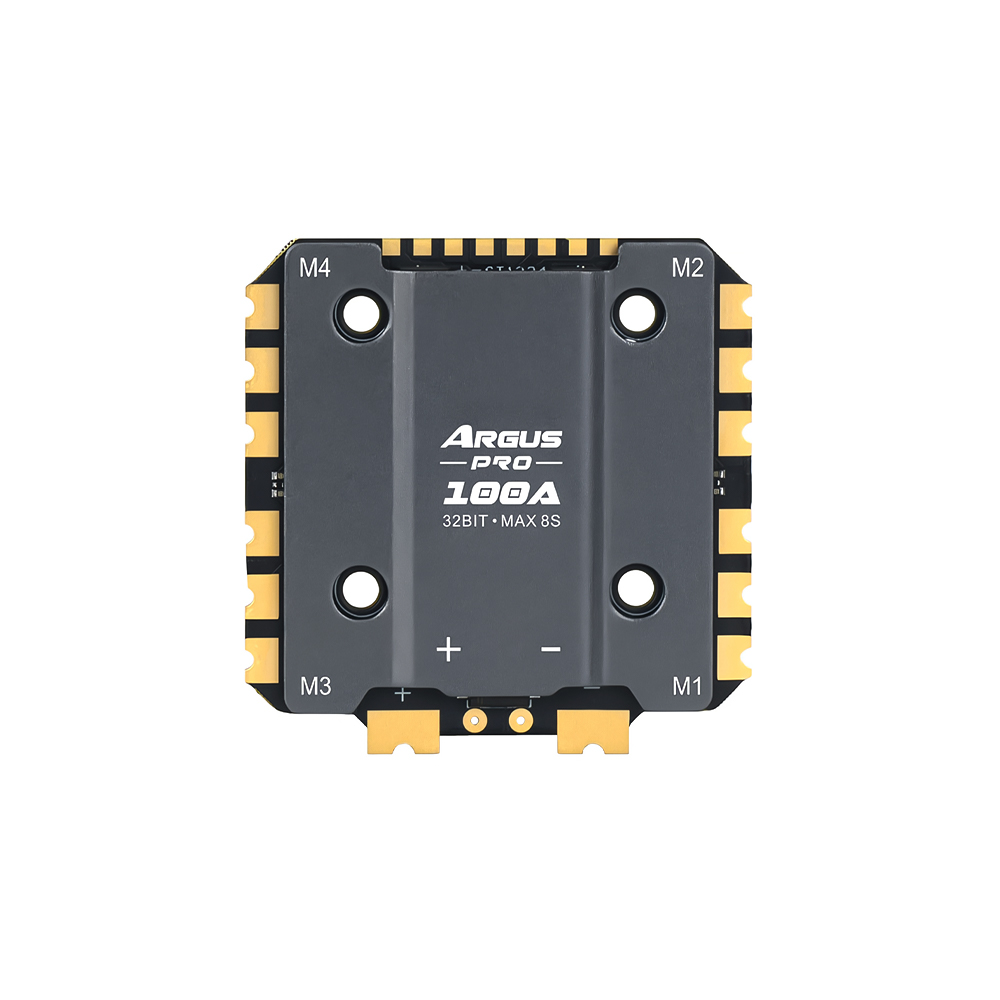

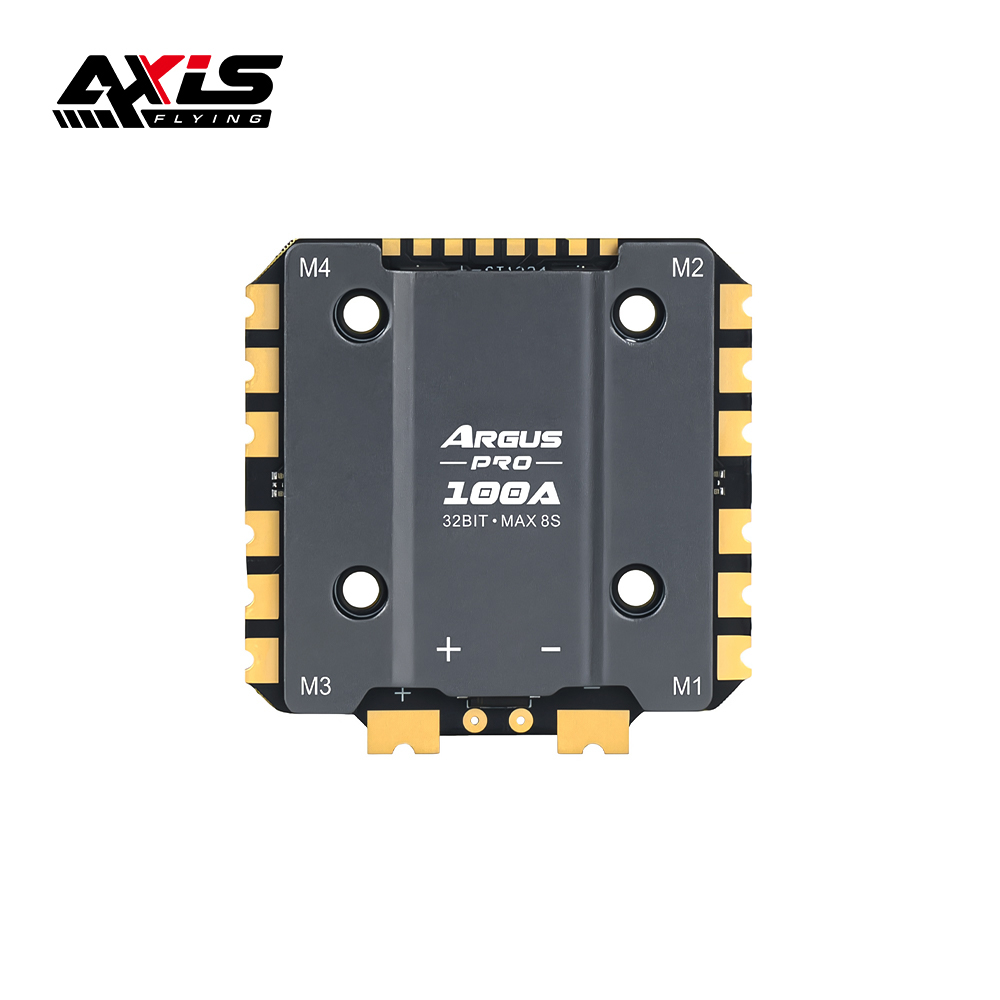

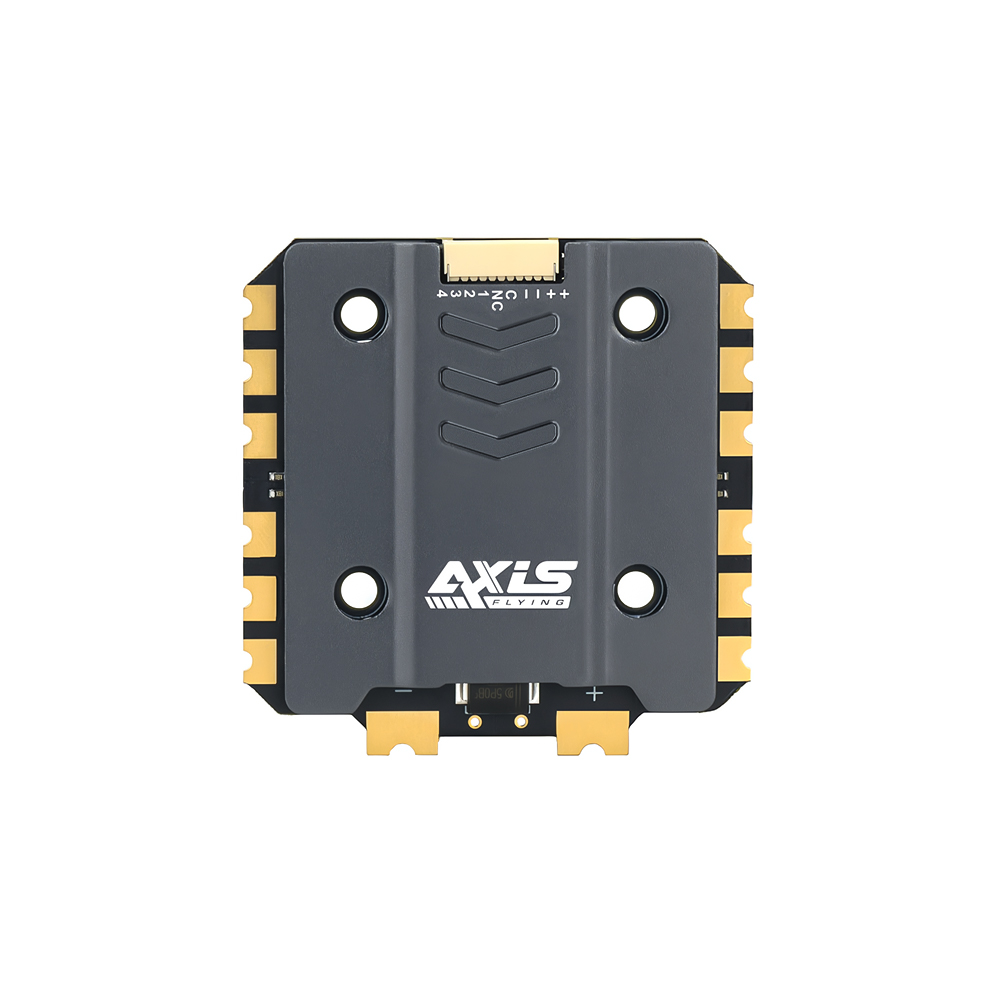

ESC: Argus Pro 100A

• Firmware: B‑X‑40‑Bluejay (8‑bit) / BLHeli32 (32‑bit)
• Input Voltage: 4–8S LiPo
• Continuous Current: 100A
• Burst Current: 110A
• Ammeter: 200A
• Temperature Protection: Supported
• Telemetry: 32‑bit supported; 8‑bit not supported
• BEC: Not supported
• Size: 57×56×7mm
• Mount: 30.5×30.5mm
• Weight: 41±2g

Package Contents

1. FC connection cable ×1
2. M3×30 screws ×4
3. M3 nylon nuts ×4
4. Capacitor ×1
5. Vibration damping grommets ×8
6. XT90 power cable ×1
7. Receiver cable ×1
8. HD VTX cable ×1
9. Analog camera cable ×1
10. Analog VTX cable ×1
